Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
6-Year Warranty – Because Satisfaction Matters
Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
|
Brand |
Arctic |
|
Sku |
ACFAN00319A |
|
Model |

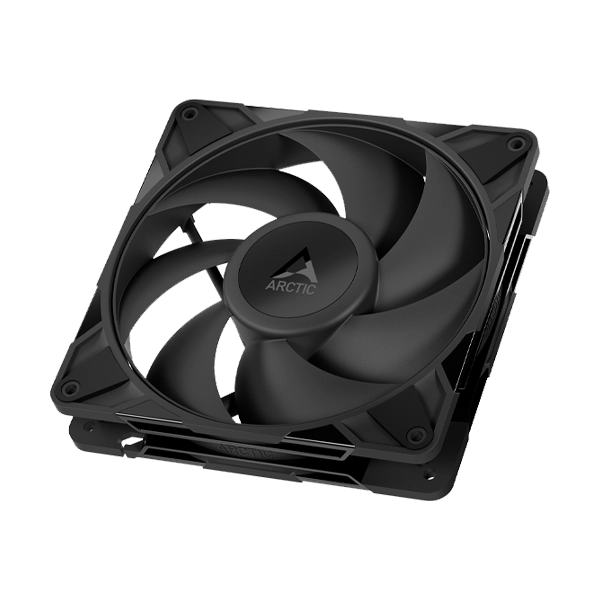

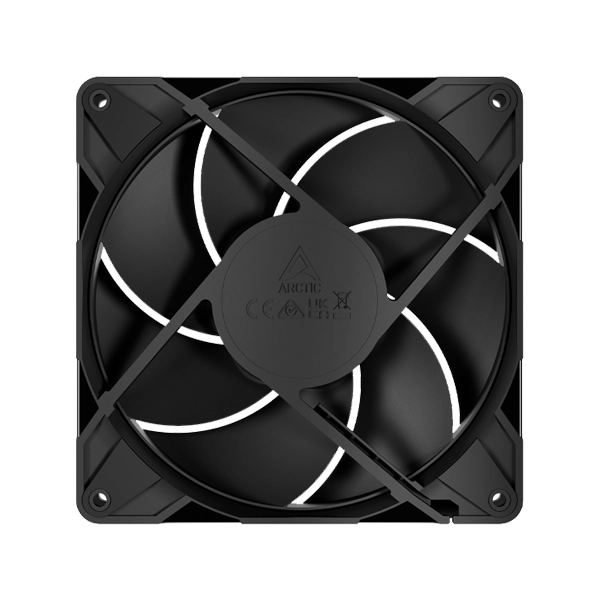

ARCTIC P14 Pro PST (5 Pack) |
|
Color |
Black |
|
Fan Size |
140 mm |
|
Dimensions |
140 × 140 × 27 mm |
|
Quantity |
5 Fans |
|
Fan Speed |
400 – 2500 RPM (PWM) |
|
Airflow |
Up to 110 CFM (186 m³/h) |
|
Static Pressure |
5.2 mmH₂O |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Noise Level |
Low at idle, higher at max speed |
|
Connector |
4-pin PWM + PST daisy chain |
|
Voltage |
12V DC |
|
Start Voltage |
5V |
|
Current |
~0.35 A |
|
Cable Length |
400 mm + 80 mm splitter |
|
Airflow Direction |
Standard |
|
Lighting |
No RGB |
|
Operating Temperature |
0 – 40°C |
|
Weight (per fan) |
~242 g |
|
Special Feature |
PWM Sharing Technology (PST) |
|
Warranty |
6 Years |
|
Note** |
**Prices, Specifications & Features are subject to change without notice |
