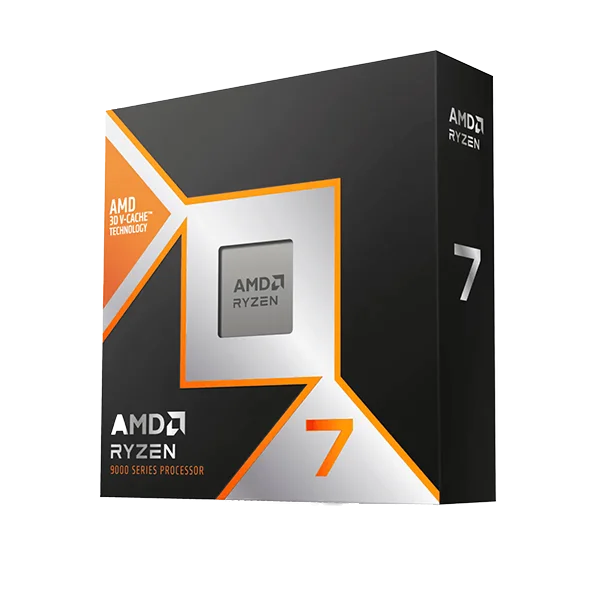

AMD Ryzen 7 9800X3D
FEATURES
- High Performance Processing: Powered by AMD’s Ryzen™ 7 9800X3D, this processor delivers a base clock of 4.7 GHz, with a maximum boost of up to 5.2 GHz, for enhanced multitasking and performance.
- Advanced Architecture: Built on AMD’s Zen 5 architecture and TSMC’s 4nm FinFET technology, this processor balances speed and efficiency.
- Large Cache Capacity: Features a 96MB L3 cache and 8MB L2 cache, significantly reducing latency and enhancing gaming and professional workloads.
- Overclocking Ready: Equipped with AMD EXPO™ Memory Technology, Precision Boost Overdrive, and unlocked overclocking for enthusiasts looking to push performance.
- Superior Memory Support: Supports up to 192GB of DDR5 memory at speeds of DDR5-5600 for seamless multitasking and data handling.
- Integrated Radeon™ Graphics: Comes with AMD Radeon™ Graphics, operating at a frequency of 2200 MHz for basic display output, eliminating the need for a dedicated GPU.
- Latest Connectivity: Offers PCIe® 5.0 compatibility with 28 lanes, USB 3.2 Gen 2 ports, and NVMe RAID support for faster data transfer and system scalability.
SPECIFICATIONS
| General Specifications | |
| Brand | AMD |
| Model | 100-1000001084WOF |
| Name | AMD Ryzen 7 9800X3D |
| Family | Ryzen |
| Series | Ryzen 9000 Series |
| Form Factor | Desktops, Boxed Processor |
| Market Segment | Enthusiast Desktop |
| AMD PRO Technologies | No |
| Consumer Use | Yes |
| Regional Availability | Global |
| Former Codename | Granite Ridge AM5 |
| Architecture | Zen 5 |
| CPU Cores | 8 |
| Threads | 16 (SMT: Yes) |
| Max. Boost Clock | Up to 5.2 GHz |
| Base Clock | 4.7 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| Default TDP | 120W |
| CPU Technology | • CPU Cores: TSMC 4nm FinFET • I/O Die: TSMC 6nm FinFET |
| Package Die Count | 2 |
| Overclocking Features | • Unlocked for Overclocking • AMD EXPO™ Memory Technology • Precision Boost Overdrive • Curve Optimizer Voltage Offsets • Ryzen™ Master Support |
| Socket | AM5 |
| Supporting Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Cooling | • No thermal solution included • Liquid cooler recommended |
| Max Temperature | 95°C |
| OS Support | • Windows 11 (64-Bit) • Windows 10 (64-Bit) • RHEL x86 64-Bit • Ubuntu x86 64-Bit |
| Connectivity | |
| USB Ports | • 4x USB 3.2 Gen 2 (10Gbps) • 1x USB 2.0 (480Mbps) |
| PCIe Version | PCIe® 5.0 |
| PCIe Lanes | 28 total, 24 usable |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| Memory Type | DDR5 |
| Memory Channels | 2 |
| Max Memory | 192 GB |
| Memory Subtype | UDIMM |
| Max Memory Speed | • 2x1R: DDR5-5600 • 2x2R: DDR5-5600 • 4x1R: DDR5-3600 • 4x2R: DDR5-3600 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200 MHz |
| USB Type-C DisplayPort | Yes |
| Legal & Support | |
| Warranty | 3 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
