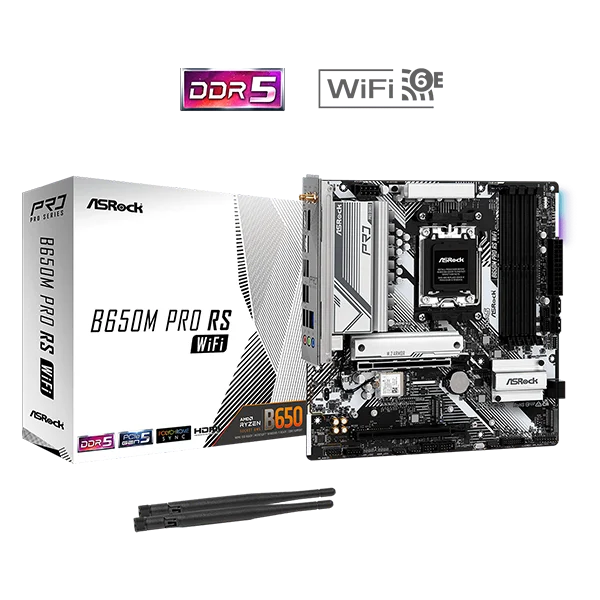

ASRock B650M Pro RS WiFi AM5 DDR5 mATX Motherboard
FEATURES
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 4.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4)
1 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen4 x2) - 1 USB 3.2 Gen2 Type A+C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - Dragon 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Specifications
| Brand | ASRock |
| Color | White |
| Model | B650M PRO RS WIFI |
| Unique Feature | |
| Superb Productivity | PCIe Gen5 (M.2), Dual Channel DDR5 |
| Rock-Solid Durability | 8+2+1 Power Phase, 50A Dr.MOS, Pre-Installed I/O Shield |
| Ultrafast Connectivity | 2.5G LAN, 802.11ax Wi-Fi 6E Module |
| EZ Update | BIOS Flashback Button, ASRock Auto Driver Installer |
| EZ Troubleshooter | ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors* |
| Chipset | AMD B650 |
| Memory | Dual Channel DDR5 Technology, 4 x DDR5 DIMM Slots, up to 7200+(OC)*, Max 256GB |
| Supports ECC/non-ECC, XMP, and EXPO modules | |
| Graphics | Integrated AMD RDNA™ Graphics, HDMI 2.1 & DisplayPort 1.4, up to 4K 120Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio |
| LAN | 2.5G LAN (Dragon RTL8125BG) with Smart Auto Adjust Bandwidth Control |
| Wireless LAN | 802.11ax Wi-Fi 6E Module, Dual-Band 2×2, Bluetooth 5.2 |
| Slots | CPU: 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x16 Slot |
| Storage | 1 x Blazing M.2 Gen5, 1 x Hyper M.2 Gen4, 1 x M.2 Gen4, 4 x SATA3 6Gb/s |
| RAID | RAID 0, RAID 1, and RAID 10 for SATA and M.2 NVMe |
| USB | USB 3.2 Gen2 Type-C, USB 3.2 Gen1, USB 2.0 (various configurations) |
| Connector | SPI TPM Header, RGB LED Header, Chassis/Water Pump Fan Connectors, Thunderbolt AIC |
| Rear Panel I/O | HDMI, DisplayPort, USB 3.2 Gen2, RJ-45 LAN, Audio Jacks |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Warranty | 3 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
