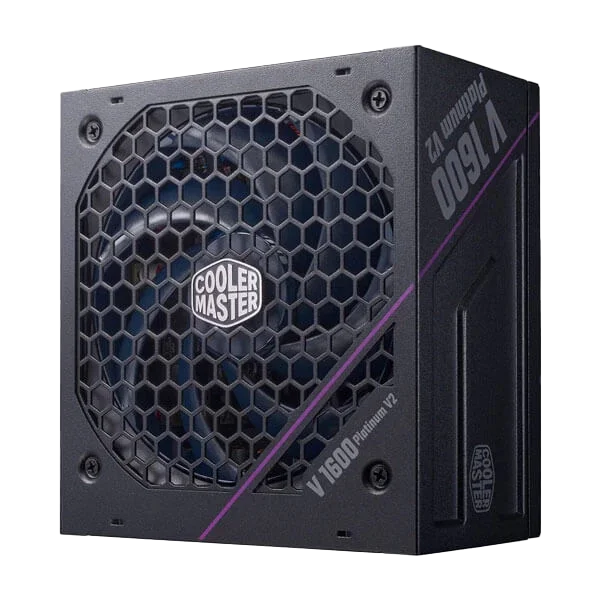

Cooler Master V Platinum 1600 Watt V2 ATX Fully Modular SMPS
FEATURES
- Dual 40 series​ GPU support
- ATX 3.1 support & two durable 90° 12V-2×6 cables
- Advanced heat dissipation
- Ultra-quiet Mobius fan
- 80 Plus Platinum certification
- 12-year warranty
Ultra-quiet Mobius fan:Â An ultra-quiet Mobius fan featuring high-performance oil reflow and an innovative ring blade design.
80 Plus Platinum efficiency certification:Â This unit is certified to achieve more than 92% efficiency at typical loads.
Optimized thermal performance:Â Anodic-coated heat sinks keep average component temperatures lower than a traditional heat
sink for enhanced durability and a prolonged life span.
ATX 3.1 support & a durable 12V-2×6 cable:Â Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2×6) PCIe 5.1 cable featuring
lower temperatures, enhanced durability, and improved safety.
Dual 40 series GPU support:Â Two 12V-2×6 connectors for dual 40 series GPU support.
Protective coating:Â A conformal coating provides protection against dust, moisture, and insects.
Interleaved PFC design:Â An interleaved PFC decreases power loss by minimizing the current and reducing interference.
Smart thermal control mode: Fan speed is automatically adjusted according to the PSU’s operating temperature.
Silent fan performance with a zero-RPM mode:Â This unit defaults to zero fan spin, providing silent fan performance.
Fully modular cabling:Â Efficiently reduces clutter, increases airflow, and improves overall efficiency and thermal performance.
High-quality Japanese capacitors:Â Large, high-quality Japanese capacitors feature reduced ripple noise and enhanced reliability.
12-year warranty:Â This unit comes with a standard limited manufacturing warranty of 12 years from the date of purchase.
SPECIFICATIONS
| Brand | Cooler Master |
| Color | Black |
| Model | MPZ-G002-AFAP |
| Form Factor | ATX |
| Watts | 1600W |
| Category | Above 750W |
| Modular | Fully Modular |
| PFC | Active PFC |
| Input Frequency | 50-60Hz |
| ErP 2014 Lot 3 | Yes |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| 80 PLUS Rating | 80 PLUS Platinum |
| EPS 8 Pin Connector | 1 |
| Power Good Signal | 100 – 150 ms |
| 12V-2×6 Connectors | 2 |
| SATA Connectors | 16 |
| MTBF | >100,000 Hours |
| Fan Bearing | LDB |
| 80 Plus | Platinum |
| Operating Temperature | 0-50°C |
| Fan Size | 135mm |
| Input Voltage | 100-240V |
| Peripheral 4 Pin Connectors | 4 |
| Protections | OVP |
| Protections | OPP |
| Protections | SCP |
| Series | V Platinum Series |
| Protections | UVP |
| PCI-e 6+2 Pin Connectors | 5 |
| Protections | OTP |
| Protections | OCP |
| Protections | Surge and Inrush Protection |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Regulatory | CCC |
| Regulatory | CE |
| ATX Version | ATX 12V Ver. 3.1 |
| Regulatory | RCM |
| Fan Speed | 2400±10% RPM |
| Regulatory | EAC |
| Regulatory | cTUVus |
| Regulatory | FCC |
| Efficiency | ≥ 92% @ Typical Load |
| Regulatory | BSMI |
| Hold Up Time | ≥ 16ms |
| Regulatory | TUV |
| Regulatory | UKCA |
| Regulatory | RoHS2.0 / BIS |
| Regulatory | KC (based on region’s request.) |
| Input Current | 16-8A |
| Model | MPZ-G002-AFAP |
| Warranty | 12 Years |
| Note* | *Price, feature and specifications are subject to change without notice. |
