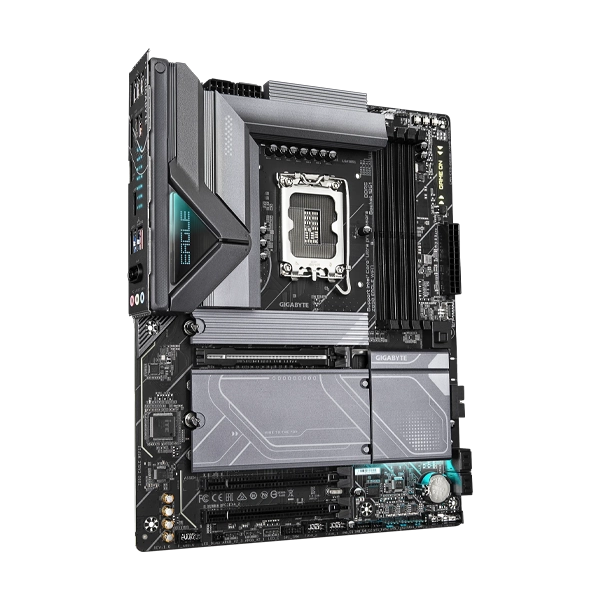

Gigabyte Z890 Eagle WiFi7 Motherboard
FEATURES
- Gigabyte Supports Intel® Core™ Ultra processors (Series 2).
- Digital twin 14+1+2 phases VRM solution.
- D5 Bionic Corsa for Infinite Memory Performance.
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support.
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
- EZ-Latch Click : M.2 heatsinks with screwless design.
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard.
- Fast Networking : 2.5GbE LAN & Wi-Fi 7.
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort.
- PCIe UD Slot XÂ : PCIe 5.0 x16 slot with 10X strength for graphics card.
SPECIFICATIONS
| Brand | Gigabyte |
| Model | Z890 EAGLE WIFI7 |
| Colour | Black |
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9200 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Support CUDIMM memory module | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Graphics Port | 1 x USB4 USB Type-C Port,1 x DisplayPort |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| Chipset: | |
| – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) | |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x USB4® USB Type-C® port (DisplayPort (Note)) |
| 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x DisplayPort (Note) | |
| 2 x antenna connectors (2T2R) | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| Internal I/O Connector | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 2 x Thunderboltâ„¢ add-in card connectors (For GIGABYTE Thunderboltâ„¢ 5 add-in card only) | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x power button | |
| 1 x Q-Flash Plus button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
