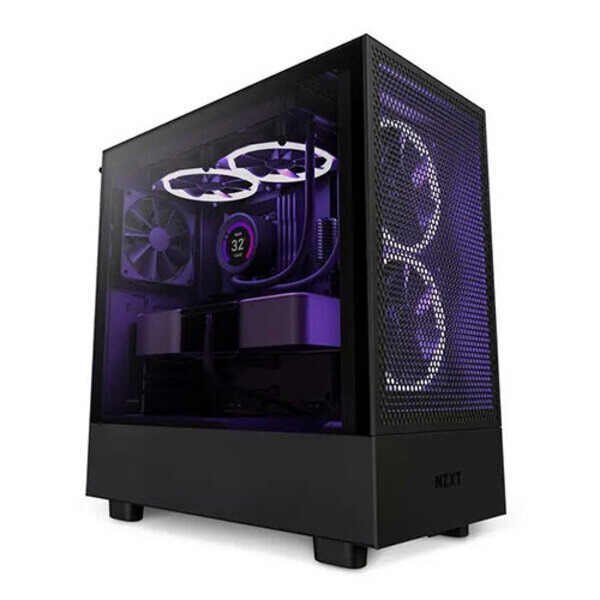

NZXT H5 Flow Black
FEATURES
- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F120Q fans
SPECIFICATIONS
KEY SPECS |
|
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
DIMENSIONS |
|
| Height | 464mm (With Feet) |
| Width | 227mm |
| Depth | 446mm |
| Weight | 7.01 kg |
COMPATIBILITY & CLEARANCE |
|
| Max CPU Cooler Clearance | Up to 165mm |
| Max GPU Clearance | Up to 365mm |
| Front Radiator Clearance | 45mm |
| Cable Management | Up to 23mm |
FRONT I/O PORTS |
|
| USB 3.2 Gen 1 Type-A | 1 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
EXPANSION SLOTS |
|
| Standard | 7 |
| Vertical | 0 |
DRIVE BAYS |
|
| 2.5″ | 2 |
| 3.5″ | 1 |
FAN SUPPORT |
|
| Front | 2 x 120mm / 2 x 140mm |
| Top | 2 x 120mm |
| Rear | 1 x F Series Quiet 120mm (Case Version) included |
| Bottom | 1 x F Series Quiet 120mm (Case Version) included |
RADIATOR SUPPORT |
|
| Front | Up to 280mm |
| Top | Up to 240mm |
| Rear | Up to 120mm |
FAN SPECS |
|
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240RPM |
| Airflow | 62.18 CFM |
| Static | 1.05 mm – H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Warranty | 2 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
